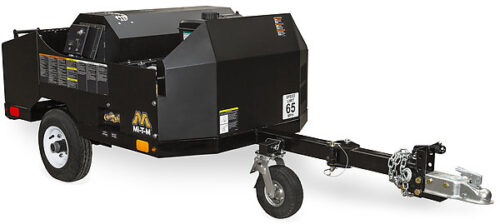

STEP 1: Pick a Mini-Trailer Model:
MODELS
- HMT-4004-0MGH
- HMT-4004-0MGV
PUMP
- Adjustable pressure unloader
- Forged brass manifold
- Thermal relief valve
ENGINE
- Remote engine start and choke
- 12V electric start (battery not included)
FRAME
- Reinforced powder coated steel frame
- Locking rear storage area – 2.875 cubic feet
- 2-inch ball hitch
- Caster brake (use when unhitched)
- 2 – 4.80-8 8-inch bias ply tires
COMPONENTS
- 1/2-inch schedule 80 pipe-coil with 4-pancake heat exchanger
- 12V Beckett burner
- No. 1 or No. 2 fuel oil, diesel or kerosene fired burner (not approved for bio-fuel)
- Engine hour meter
- 1000 lb axle
SAFETY FEATURES
- Removable safety flag for transportation and guidance when backing up
- Recommended maximum speed is 65 mph
- DOT approved
- 250F high temperature safety limit switch
UNIT INCLUDES
- Quick connect nozzles: 0°, 15°, 25° and 40°
- 50-foot x 3/8-inch steel wire-braided hose
- Adjustable pressure insulated dual lance with trigger gun
MISCELLANEOUS
- Temperature rise 140°F/60°C above ambient
LIMITED WARRANTY
- 3 year engine
STEP 2: Pick Your Trailer Accessories and Options:
15-0160 75-foot x 3/8-inch hose – 4500-PSI rated, R2, for use with hose reel TX–0020
15-0161 100-foot x 3/80inch hose – 4500-PSI rated, R2 for use with hose reel TX-0020
20-1366A52 Black powder coated rain cap – protects boiler from moisture build-up when unit is left outside, octagonal
AW-8400-0021 Low pressure detergent injector – allows the user to apply the recommended detergents
TX-0010 Adjustable trailer coupler hitch 2in.
TX-0020 High pressure hose reel
